Hydraulic Cabin Cylinder 0025531005 0025530905 0025531305 0025531405 for MERCEDES-BENZ
Product Overview
This lift cylinder is used in Mercedes-Benz trucks to lift the truck cab and facilitate the maintenance of the bottom of the cab
1. Imported sealing materials, advanced sealing dust-proof structure, stable and reliable sealing structure;
2. Safety and reliability: The design of the lifting cylinder fully considers safety, and adopts a new hydraulic control check valve structure to ensure safety during the lifting process;
3. The hydraulic cylinder has good stability, and after 60 million follow-up tests, it ensures stable performance;
4. This lifting cylinder has strong competitiveness and can meet the needs of different industries and scenarios. The cylinder head of this model is a fork head type

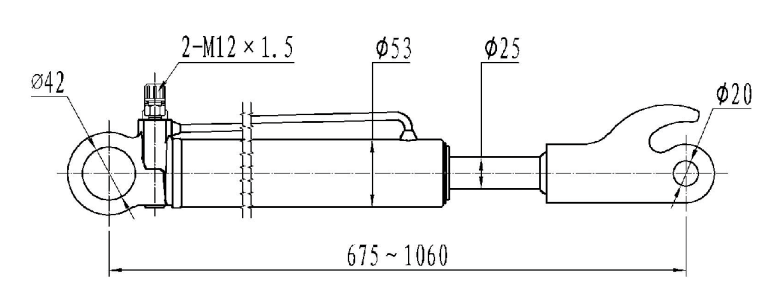

Specifications
| diameter1 | 53 |
| diameter2 | 25 |
| bore1 | 42 |
| bore2 | 20 |
| length | 675 |
| stroke | 385 |
| tolerance | |
| thread size1 | M12*1.5 |
| thread size2 | M12*1.5 |
| pressure | 250 |
