Hydraulic Cabin Cylinder 00025535205 0025531805 for Mercedes-Ben
Product Overview
This lifting cylinder is used in Mercedes-Benz trucks and its function is to lift the truck cab for easy maintenance of the cab floor.
1. It adopts imported sealing materials and an advanced sealing and dustproof structure, ensuring a stable and reliable sealing structure;
2. Safe and reliable: The design of the lifting cylinder fully considers safety, and adopts a new type of hydraulic control check valve structure to ensure safety during the lifting process;
3. This hydraulic cylinder has good stability, and its performance remains stable after 60 million cycles of follow-up testing;
4. This lifting cylinder is highly competitive and can generally meet the needs of different industries and scenarios. This model features a fork-head cylinder head.

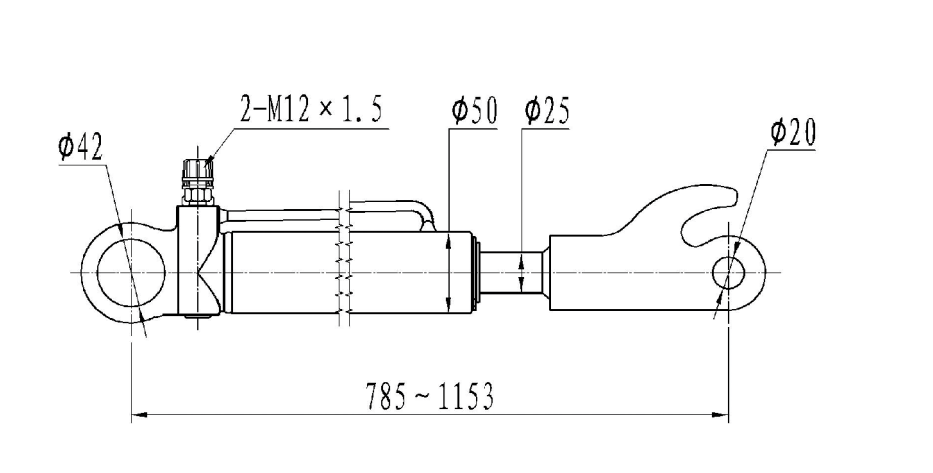

Specifications
| diameter1 | 50 |
| diameter2 | 25 |
| bore1 | 42 |
| bore2 | 20 |
| length | 785 |
| stroke | 368 |
| tolerance | |
| thread size1 | M12*1.5 |
| thread size2 | M12*1.5 |
| pressure | 250 |
