Hydraulic Cabin Cylinder 0025538205 for Mercedes-Ben
Product Overview
This lift cylinder is used in Mercedes-Benz trucks, the function is to lift the truck cab, which is convenient for the maintenance of the bottom of the cab.
1. Imported sealing materials, advanced sealing dust-proof structure, sealing structure is stable and reliable;
2. Safety and reliability: The design of the lifting cylinder fully considers safety, and adopts a new hydraulic control check valve structure to ensure safety during the lifting process;
3. The hydraulic cylinder has good stability, and after 60 million follow-up tests, it ensures stable performance;
4. This lifting cylinder has strong competitiveness and can meet the needs of different industries and scenarios. The cylinder head of this model is a fork head type

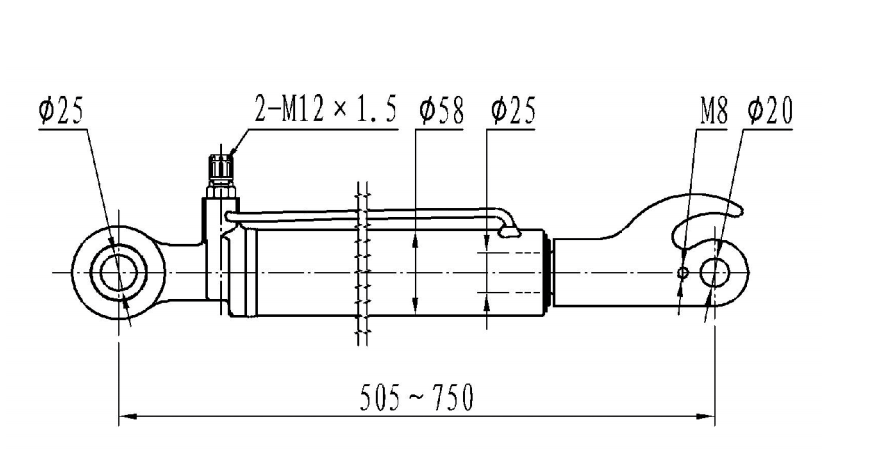

Specifications
| diameter1 | 58 |
| diameter2 | 25 |
| bore1 | 25 |
| bore2 | 20 |
| length | 505 |
| stroke | 245 |
| tolerance | |
| thread size1 | M12*1.5 |
| thread size2 | M12*1.5 |
| pressure | 250 |
