Hydraulic Cabin Cylinder 504065532 for IVECO
Product Overview
We manufacture complete tipping systems for Iveco cab with integrated electro-hydraulic pump and cylinder (OEM 504065532)
Traditional truck cab tipping systems are generally made up of one or more hydraulic tipping cylinders, one or more groups of hydraulic or mechanical latches that lock the cab in the lowered position and release it when it needs to be raised.
The tilting cylinders and the hydraulic locking laces are connected by high pressure flexible hoses to a separate hydraulic pump, complete with tank and directional valve. The pumps can be manually or electrically operated. Additional valves are present in these systems to control the speed of ascent and descent of the cabin and to avoid accidents in case of breakage of the hydraulic pipes with consequent uncontrolled fall of the cabin itself.
The system presented here, on the other hand, consists of an integrated cylinder + electric pump system which performs, with a single unit, the functions of traditional systems in which the components are separated. The various safety and speed control functions, up and down, are all incorporated in the doors of the cylinder itself, thus allowing maximum compactness and ease of connection and use to be achieved.
IVECO E-CAB cab tilting system 504065532: main features
- Electric operation
- Compact design
- Length mm ≈708 (closed)
- Stroke mm 484
- Amperage (A) 60 (peak)
- No. of fittings 2
- Resistance to corrosion and atmospheric agents
- Diameter of fixing points 20.30 mm

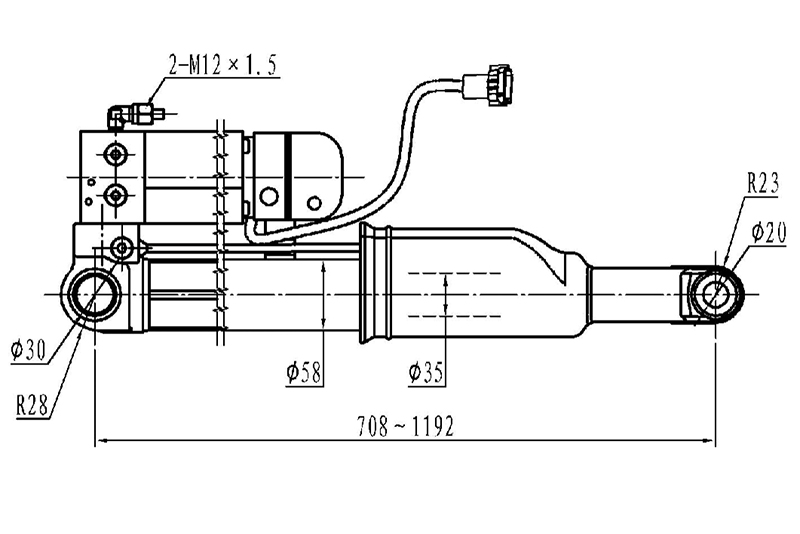

Dimensions
| diameter1 | 58 |
| diameter2 | 35 |
| bore1 | 30 |
| bore2 | 20 |
| length | 708 |
| stroke | 484 |
| tolerance | / |
| thread size1 | M12*1.5 |
| thread size2 | M12*1.5 |
| pressure | 250 |
Notice：This product is fully interchangeable with original equipment (OE). This is not a genuine part unless stated.
All products are covered by the manufacturer's 12 month warranty.
Any manufacturer or OE part numbers are listed for cross reference and identification purposes only and in no way imply that this is a genuine part.
As models can vary please check with your vehicle registration or chassis number if you don't know the OE number.
All vehicles can have different specifications and variants within the standard model. These variants will fall within the same years as the models this item fits. Unless you know the exact details of your model please contact us before ordering. Especially on the cross over years, the last of the old model is made in the same year as the first of the new model!
