Hydraulic Cabin Cylinder ZF-WS006 for JAPANESE
Cabin Tilt Cylinder - JAPANESE

Hydraulic Cabin Cylinder ZF-WS006 for JAPANESE

This lifting cylinder is used in Japanese Isuzu trucks to lift the truck cab for easy maintenance of the cab bottom.

1. It uses imported sealing materials and advanced sealing and dustproof structure, and the sealing structure is stable and reliable;
2. Safe and reliable: The design of the lifting cylinder fully considers safety and adopts a new hydraulically controlled one-way valve structure to ensure safety during the lifting process;
3. This hydraulic cylinder has good stability and its performance is guaranteed to be stable after 60 million follow-up tests;
6. This lifting cylinder is very competitive and can meet the needs of different industries and scenarios. This model is in great demand in the European market.

Model ZF-WS006
Applicable models JAPANESE

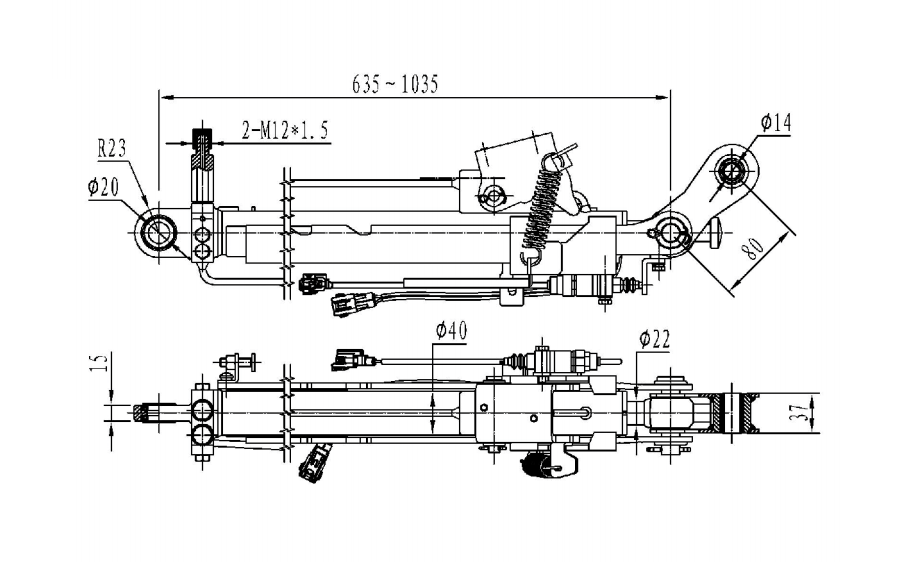

    Specifications

    diameter1  40
    diameter2 22
    bore1 20
    bore2 14
    length 635
    stroke 400
    tolerance
    thread size1 M12*1.5
    thread size2 M12*1.5
    pressure 250

    1430
